online lead detector
Lead ion selective electrode, with the advantages of simple measurement, fast and accurate response, can be used with PH meter, ionometer and on-line lead ion analyzer, and is also used in the ion selective electrode detector of electrolyte analyzer and flow injection analyzer.The selective electrode of the on-line lead detector is an effective method to measure the lead ion content in samples. Lead ion-selective electrodes are also often used in on-line instruments, such as industrial on-line monitoring of lead ion content.
JAMES@MADSURGROUP.COM
The selective electrode of the on-line lead detector is an effective method to measure the lead ion content in samples. Lead ion-selective electrodes are also often used in on-line instruments, such as industrial on-line monitoring of lead ion content.
Lead ion selective electrode, with the advantages of simple measurement, fast and accurate response, can be used with PH meter, ionometer and on-line lead ion analyzer, and is also used in the ion selective electrode detector of electrolyte analyzer and flow injection analyzer.
Can be applied to:
industry, environmental protection, education, agricultural Internet of Things and other industries.
| specification： | |
| measuring range | 0.2…20700ppm |
| pH range | 4…7pH |
| resolution ratio | 0.001 ppm |
| measurement accuracy | ±5%FS |
| TEMP measuring range | 0…60℃ |
| slope | 56±4mV(25℃) |
| sensing element | solid membrane |
| reproducibility | ±4% |
| membrane resistance | ＜50MΩ |
| output | |
| signal output | 4…20 mA（Adjustable/three-wire system） |
| Current Accuracy | 1%FS |
| output load | ＜750Ω |
| data communication | Rs485(MODBUS-RTU) |

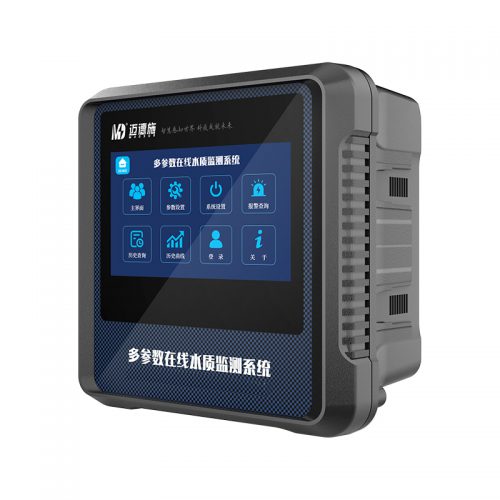

Controller parameters
| Model | MDS-KP500 |
| Display | 4.3 inches, 480*800 resolution, 262K color, IPS screen, wide viewing Angle, with backlight |
| Capacitive touch screen with three protection processes (moisture-proof, mildew proof, salt spray proof) | |
| Display size | 95.0mm*53.9mm |
| Measuring range | -99999.0000~99999.0000 |
| Password Protection | The default password is 0000 |
| Compatible sensor | Digital sensor |
| Mounting method | Disk mounting (with chassis), wall-mounted mounting |
| Alarm relay | 2 relays can set high and low alarm |
| Current output | 2 isolated 4-20mA, maximum load 750Q, can be set |
| Communication port | RS485 Modbus RTU |
| Memory backup | All user Settings are stored indefinitely in EERPOM |
| historical data | The storage capacity of 8000 points is recorded at a 5-minute interval |
| Operating environment | -10~+50℃,0~95% relative humidity, no condensation |
| Storage environment | -20 to +70 ° C,0 to 95% relative humidity, non-condensing |
| The power supply | 12V±10% |
| Power consumption of the instrument | less than 6W |
| Instrument size | 144X145X85(mm) |
| Protection class | IP65 |
