Online COD detector
UV absorption method to determine organic matter (such as COD TOC, etc.), no reagent, sample without digestion processing. Fast response speed, with a 10-second response (T90). Using the cold light source UVLED, long life, small drift. Using filter and PD receiver, no consumables, long life, small drift. Standard automatic cleaning brush, can effectively prevent biological pollution.With independent property rights and stable key device supply chain, the products have extremely high cost performance.
JAMES@MADSURGROUP.COM
Product characteristics
■ Double light path: 245nm and 550nm, can effectively eliminate the turbidity and color influence.
■ UV absorption method to determine organic matter (such as COD TOC, etc.), no reagent, sample without digestion processing. Fast response speed, with a 10-second response (T90).
■ Using the cold light source UVLED, long life, small drift. Using filter and PD receiver, no consumables, long life, small drift.
■ Standard automatic cleaning brush, can effectively prevent biological pollution.
■ With independent property rights and stable key device supply chain, the products have extremely high cost performance.

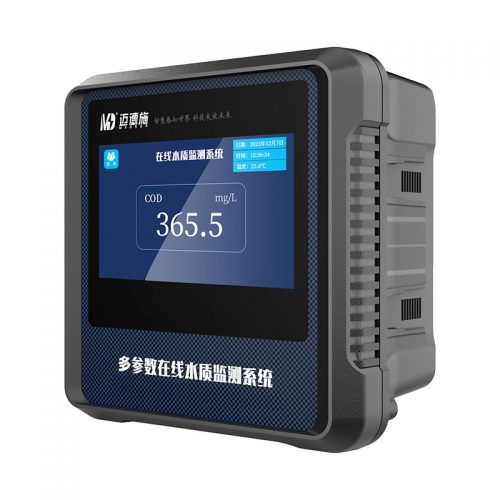

Controller parameters
| Model | MDS-KP500 |
| Display | 4.3 inches, 480*800 resolution, 262K color, IPS screen, wide viewing Angle, with backlight |
| Capacitive touch screen with three protection processes (moisture-proof, mildew proof, salt spray proof) | |
| Display size | 95.0mm*53.9mm |
| Measuring range | -99999.0000~99999.0000 |
| Password Protection | The default password is 0000 |
| Compatible sensor | Digital sensor |
| Mounting method | Disk mounting (with chassis), wall-mounted mounting |
| Alarm relay | 2 relays can set high and low alarm |
| Current output | 2 isolated 4-20mA, maximum load 750Q, can be set |
| Communication port | RS485 Modbus RTU |
| Memory backup | All user Settings are stored indefinitely in EERPOM |
| historical data | The storage capacity of 8000 points is recorded at a 5-minute interval |
| Operating environment | -10~+50℃,0~95% relative humidity, no condensation |
| Storage environment | -20 to +70 ° C,0 to 95% relative humidity, non-condensing |
| The power supply | 12V±10% |
| Power consumption of the instrument | less than 6W |
| Instrument size | 144X145X85(mm) |
| Protection class | IP65 |
